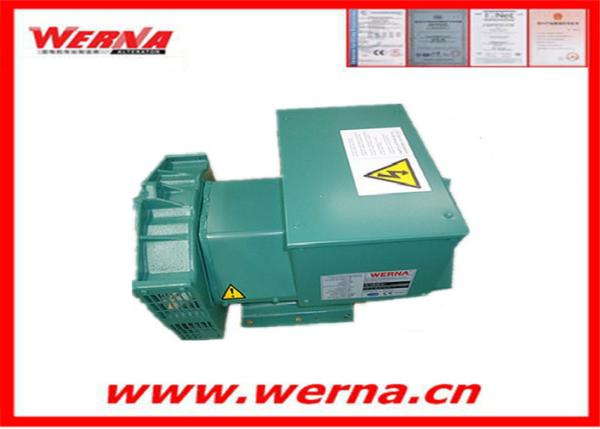

Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch
Quick Detail:
Name | Alternator | Brand Name | WERNA |
Color | According to the international standard color card | Feature |
AC brushless synchronous excitation alternator
|
Power | 488kw/610KVA | Certificate | CE,ISO9001,SASO |
Specifications:
Model | WR544E14 |
manufacturer | Wuxi City ,Jiangsu Prov ,China |
Output Type | AC 3 Phase |
Terminal | 12 / 6 Wire |
Rated Voltage | 190-454V |
Frequency | 50HZ |
Speed | 1500RPM |
Mounting dimensions | Stamford Type |
Winding Pitch | 2 / 3 pitch |
Excitation | Brushless, self-excited, synchronous |
Insulation Class | H class |
Description:
with Long experience in manufacturing alternator / ac
generator,ranging6.5~1760kw
for prime or standby use, more than 80 different models, with 50Hz
or 60Hz frequency, Single bearing or
Double bearing, brushless, Self-excited. Abounds with almost every
model in stock.
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative
humidity and the alternator is suitable
for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR. MX321,
MX341, AS440, SX440, SX460, etc
4) Adapted to excitation systems, powered by transistors and
fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001,SASO
8. Good after-sale service
Production line
Our service
Werna factory provides high quality generator sets and
alternator,each one is strictly test before Export . After service
and spart parts are availabale from our factory.
Company infomation

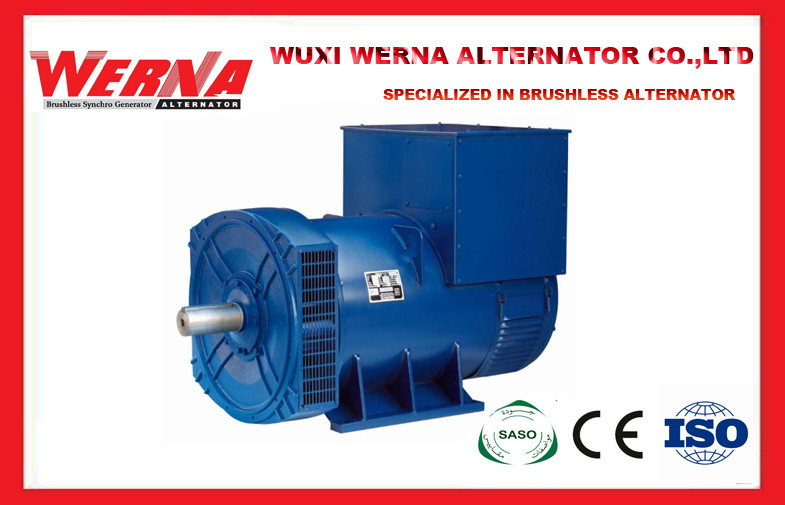

Werna company is the professional alternators manufacturer,
together with the most advanced design, production in the world.
The Werna generators are self-excited, self-regulating, brushless
synchronous machines. The insulation system of the windings
confirms to the requirements of temperature class H, ensure that
the Werna generators set a international standard for excellent
performances and reliability. Werna range covers 5kVA upto 1386kVA
at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you
selected.
Werna series conform to the requirements of IEC34, VDE0530, BS5000
part 3. Our quality standard:
To consistently deliver products and services that meet or exceed
our customer's expectations.
To continually improve everything we do, through the active
involvement of associate.
We take our great efforts to create brushless, synchronous
alternators of performance price rate excellent than world's
product. Our success owes to advance technology, High quality,
reasonable prices and Satisfied service.
We hope that We can establish the friendly business relationship
with your company, become cooperation partner, and pleasure to work
together with you. Developing together with your company. We will
offer all information and samples to you for testing in accordance
with your Detailed requirements to gain your approval. Warmly
Welcome to our company to interview At your convenience. We believe
that our alternators do not make disappointed and you will get The
satisfactory result. If you have any question, Kindly please have
no any hesitation to contact Us immediately.
