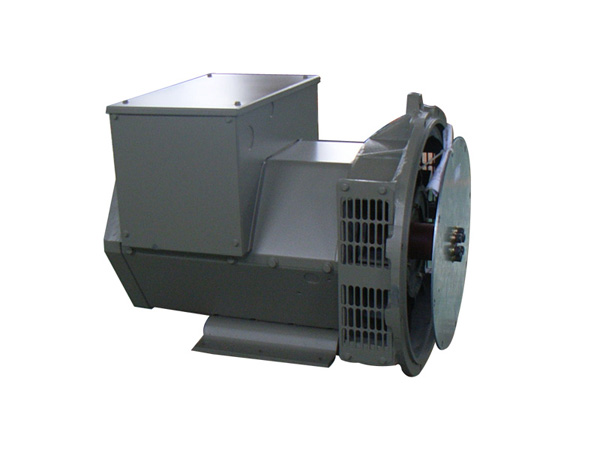

28kw 3000rpm 3 Phase Alternators / AC Brushless Generator Stamford Type

    Buy cheap 28kw 3000rpm 3 Phase Alternators / AC Brushless Generator Stamford Type from wholesalers

    Buy cheap 28kw 3000rpm 3 Phase Alternators / AC Brushless Generator Stamford Type from wholesalers
    • Buy cheap 28kw 3000rpm 3 Phase Alternators / AC Brushless Generator Stamford Type from wholesalers

    28kw 3000rpm 3 Phase Alternators / AC Brushless Generator Stamford Type

    Ask Lasest Price
    Brand Name : Werna
    Certification : CE,ISO9001,SASO
    Model Number : WR182J
    Price : negotiation
    Delivery Time : Within 10 days
    Payment Terms : T/T
    Supply Ability : 1000units/month
    • Product Details
    • Company Profile

    28kw 3000rpm 3 Phase Alternators / AC Brushless Generator Stamford Type

    28kw 3000rpm 3 Phase Alternators / AC Brushless Generator Stamford Type
    Quick detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator

    Power

    28KW

    Certificate

    CE,ISO9001,SASO


    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Three Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110V~690V

    Frequency

    60Hz

    Speed

    3600RPM

    Mounting Dimension

    Stamford Type

    Winding pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H


    Description:
    with Long experience in manufacturing alternator / ac generator,ranging6.5~120kw
    for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.

    1) Protection class IP23, insulation class H.
    2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
    3) The brushless alternator is equipped with reliable AVR. MX321, MX341, AS440, SX440, SX460, etc
    4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
    5) The power factor range from 0.8 to 1.
    6) Telephone influence factor is less than 50, according to NTMA.
    7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
    8) Overload standard according to NEMA.
    9) All generator statore are wound to 2/3 pitch.
    28kw 3000rpm 3 Phase Alternators / AC Brushless Generator Stamford Type

    Why to choose Werna Alternator/generator?
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service
